NEW Varian FRG-700 Full Range GAUGE KIT For TPS-Compact Pumping System with ISO-100 Inlet to KF25

Condition:
  New
Part Number:
  P103962
Warranty:
  Varian Warranty

Out of Stock   

Sale: L299,806.75

NEW Varian FRG-700 Full Range GAUGE KIT For TPS-Compact Pumping System with ISO-100 Inlet to KF25 299806.75
Anticipated Arrival   6 on 2025-02-21
Currency: Albanian Lek (ALL)

Description

NEW Varian FRG-700 DIY Full Range Gauge Kit, is for ISO-100 Inlet to KF25 gauge fitting.
For TPS-Compact, AG Turbo Controllers, and the Ideal Vacuum iCart Dry Systems.


These Varian FRG-700 full range active pressure gauge kits are designed to work with the Varian Agilent TPS-Compact, AG Turbo Controllers, and the Ideal Vacuum iCart Dry System. The DIY FRG 700 full range gauge is a Pirani and Cold Cathode combination gauge design and can measure pressure from atmosphere to 7x10-9 Torr. The DIY full range gauge is designed to interface directly with all the systems above. The pressure data is displayed on board the systems control windows in Torr, Pascal, or mbar and can be obtained through serial communication and analog outputs. This is a GAUGE KIT ONLY, individual parts or systems sold separately. Gauge Kit includes all the parts listed below. A FRG700 Gauge Instruction Manual .pdf can be downloaded at AVAILABLE DOWNLOADS below.

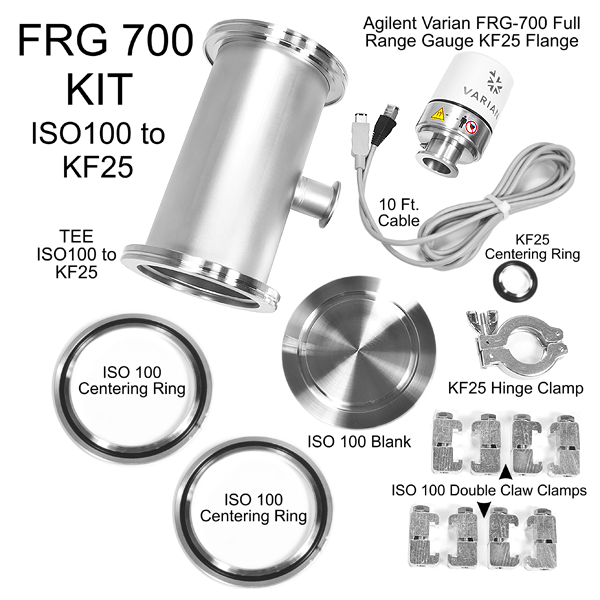

ISO100 Inlet to KF25 Gauge Kit Includes:

(1)Varian Agilent FRG-700 Full Range Gauge fitting size KF25
Part Number P103349

(1)10 ft. Signal Cable
Part Number P103596

(2)ISO 100 Centering Rings, Stainless Steel, Viton Rubber
Part Number P101762

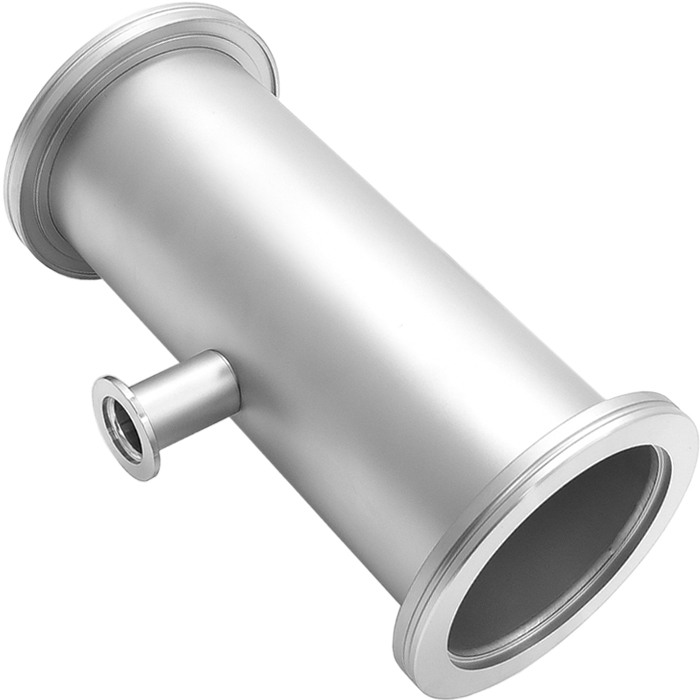

(1)TEE Adapter ISO 100 to KF25 Stainless Steel
Part Number P103452

(1)ISO 100 Blank Stainless Steel
Part Number P101683

(8)ISO 100 Double Claw Clamps Aluminum
Part Number P101771

(1) KF25 Centering Ring, Stainless Steel, Viton Rubber
Part Number P101243

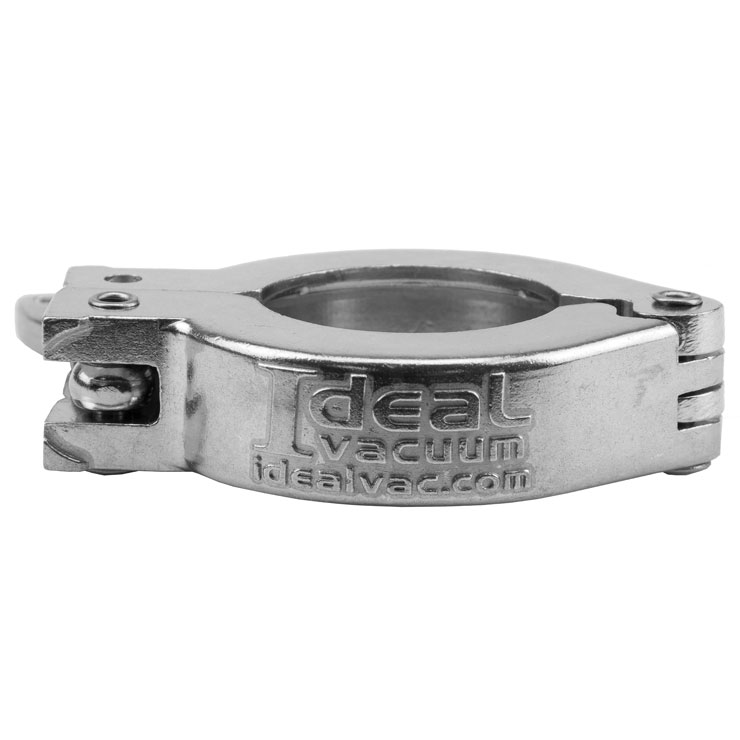

(1) KF25 Hinge Clamp
Part Number P101199



Brochure

Kit Components

Availability Of Kit Components 2

Kit: P103962 - NEW Varian FRG-700 Full Range GAUGE KIT For TPS-Compact Pumping System with ISO-100 Inlet to KF25
Component
Desc.
Req'd
Avail
Hinge Clamp KF-25 Vacuum Fittings, ISO-KF Flange Size NW-25, Aluminum
1
14896
Centering Ring KF-25 Vacuum Fittings, ISO-KF Flange Size NW-25, Stainless Steel & Viton O-ring
1
16071
ISO-K DN 100 Blank Flange, Claw Clamp Type Flange, Stainless Steel
1
148
ISO 100 Centering Ring Aluminum with Viton O-Ring, NW-100 Vacuum Flange Size, Typically Used with 4 Inch O.D. (101.6 mm) Tubing
2
245
ISO-K Double Claw Clamp for ISO-K 63, 80, and 100, fits ISO-63K thru ISO-100K Vacuum Flanges, 45mm Long M8-1.25 Bolt, Aluminum
8
3103
Agilent Varian FRG-700 Active Full Range Pirani and Inverted Magnetron Gauge, KF25, FRG700KF25
1
0
Adaptive Reducing Tee ISO-100 to KF-25, ISO MF Interface, LF100 to KF25, Stainless Steel
1
0
Agilent Varian FRG-700 Cold Cathode Pirani Combination Gauge Cable, 10 ft (3 Meters) PN 9699960
1
21
