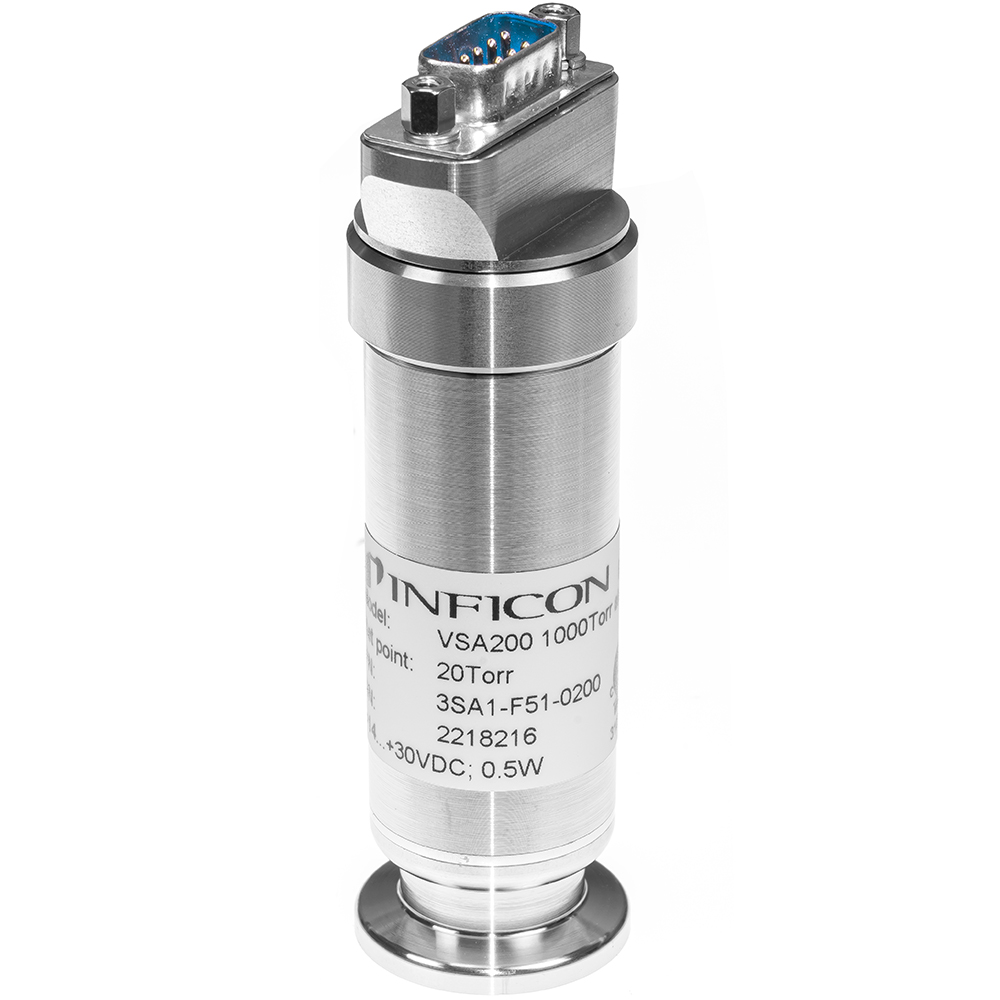

Inficon VSA 200 Absolute Vacuum Switch 1000 Torr, KF16, PN 3SA1-F51-0200

Condition:
  New
Part Number:
  P1011783
Warranty:
  Against Product Defect

Out of Stock   

Sale: L58,136.44

Inficon VSA 200 Absolute Vacuum Switch 1000 Torr, KF16, PN 3SA1-F51-0200 58136.44
Currency: Albanian Lek (ALL)

Description

Inficon VSA 200 Absolute Vacuum Switch 1000 Torr, KF16. Inficon Part Number: 3SA1-F51-0200.

Inficon Vacuum Switches are designed for accurate and reliable pressure detection. These robust electronic switches are used in all vacuum applications, including pressure interlock. This VSA 200 switch is an absolute reference vacuum device. For complete use and specifications see .pdf's to the left at Downloads.

    Key Features:
    • Corrosion resistant all stainless steel design.
    • Robust design, cleanroom compliant.
    • Easy installation with setpoints factory preset or field adjustable.
    • IP 44 protection.
    • Atmospheric pressure detection for all vaccum applications.
    • Pressure interlock (power supplies, gas supplies, pumps, valves, actuators, etc.
    • Vacuum to High Vacuum.
    • Relay output with potential free contacts.
    • High accuracy, absolute pressure range 1000 Torr.

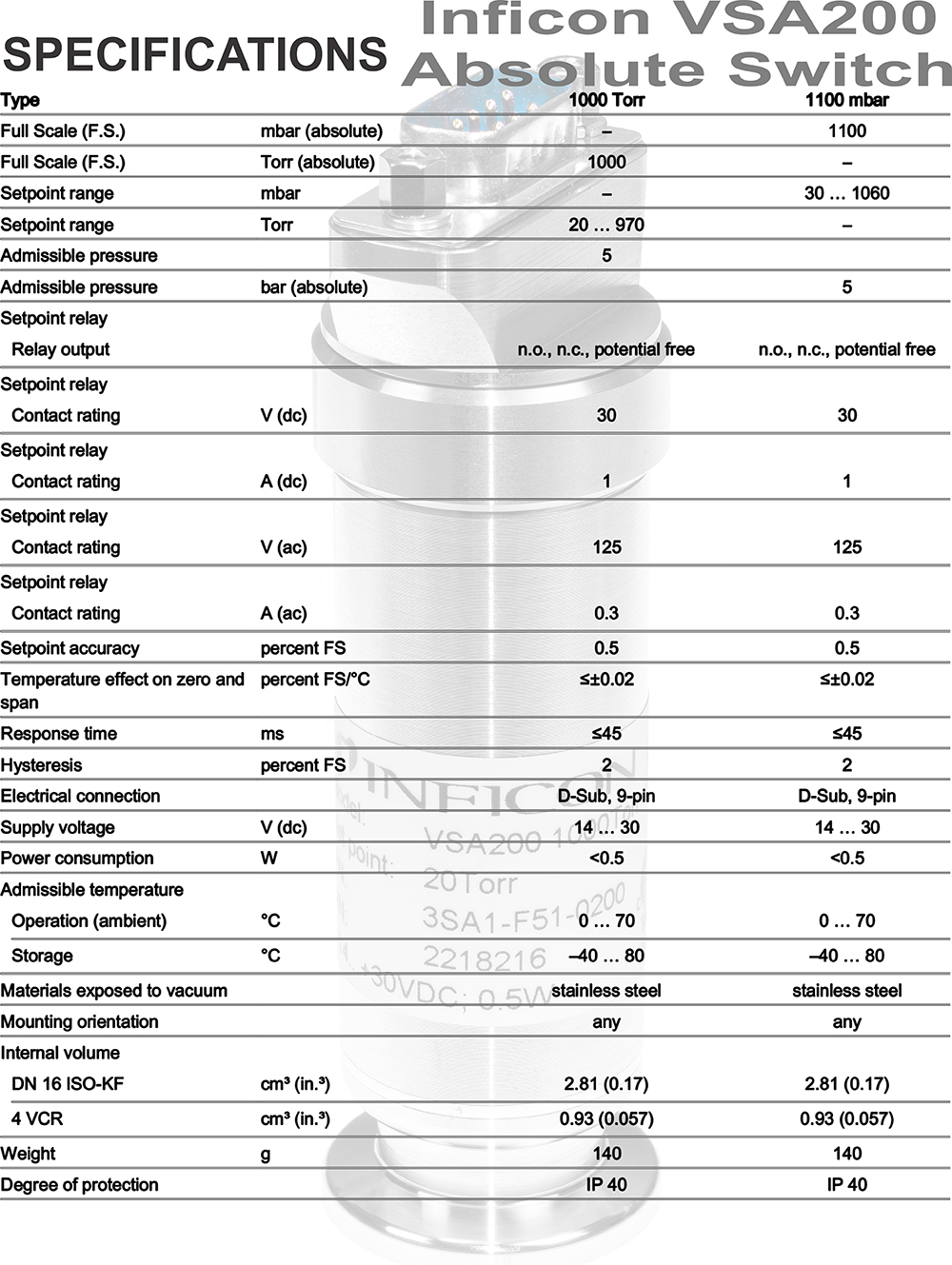

Brochure

Inficon VSA 200 Absolute Pressure Switch
