O-Ring Seal Replacement Kit, Viton, for all Delta-P System Isolation Protection Valves

Condition:
  New
Part Number:
  P1010156
Warranty:
  1-Year Limited Warranty

Available Now   50  

Sale: €34.30

Tariffs: €0.29

O-Ring Seal Replacement Kit, Viton, for all Delta-P System Isolation Protection Valves 34.3
Currency: Euro (Euro)

Description

O-Ring Seal Replacement Kit, Viton, for all Delta-P System Isolation Protection Valves

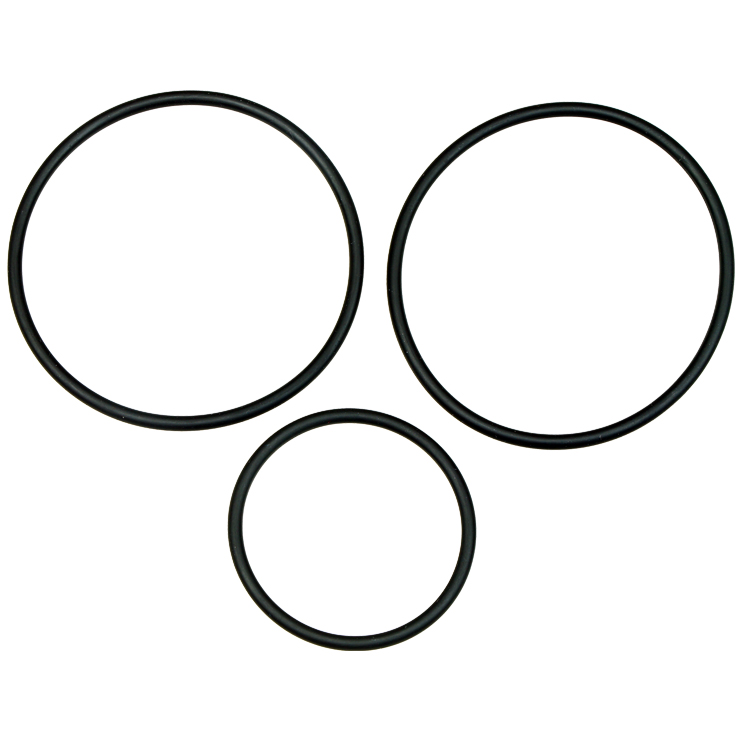

This O-ring kit replaces all three O-rings in any Ideal Vacuum Delta-P System Isolation Protection Valve. The two larger O-rings replace the flange end seals, the smaller O-ring replaces the actuator cup seal. All three O-rings are made of Viton for maximum vacuum system compatibility.

All three O-rings should be replaced if any one of them requires replacement. The flange end O-rings should be lubricated with vacuum grease prior to reassembly of the Valve. The actuator cup O-ring should not be greased.

The Delta-P Valve should be tested after O-ring replacement and Valve reassembly to ensure proper function. Instructions and test procedures are discussed in the downloadable Deltas-P User's Manual here.

Kit Components

Availability Of Kit Components 2

Kit: P1010156 - O-Ring Seal Replacement Kit, Viton, for all Delta-P System Isolation Protection Valves
Component
Desc.
Req'd
Avail
Non-Standard
 No Component Description Available On Website
1
121
Non-Standard
 No Component Description Available On Website
2
100
