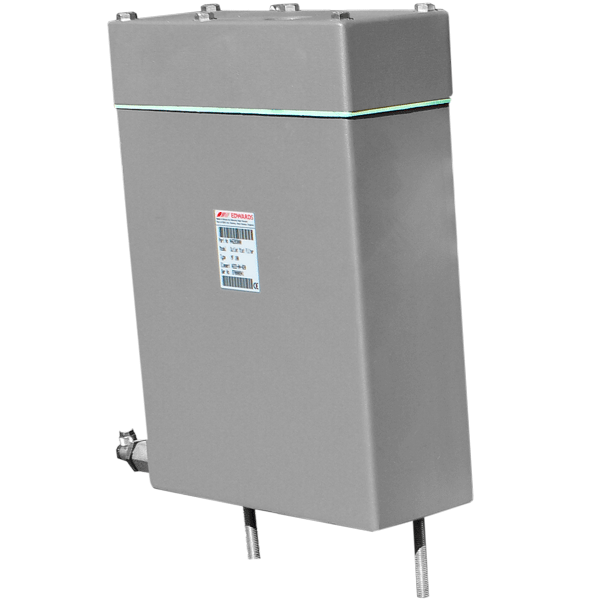

NEW Edwards MF100 MF-100 Oil Mist Filter PN A462-03-000

Condition:
  New
Part Number:
  P102890
Warranty:
  Against Product Defect

Available Now   1  

Sale: €2,457.99

NEW Edwards MF100 MF-100 Oil Mist Filter PN A462-03-000 2457.99
Currency: Euro (Euro)

Description

NEW Edwards MF100 Oil Mist Filter PN A462-03-000, Edwards PN A46203000

The MF 100 Oil Mist Filter removes oil mist (vapor) from the process gases exhausted from the outlet of an oil sealed pump. The filters remove both odor and oil vapor and so prevent it from reaching the atmosphere and the workplace. This filter is very efficient at 99.999% DOP test. For complete specifications download the instruction manual (see below available downloads).

Supplied with two NW25 "C" clamps, NW25 elbow, two NW25 centering ring and O-rings, bolts, washers, mounting brackets and studs.


Edwards MF100 MF-100 Filter, Filter Media Included. Specifications:
MF100 Edwards Oil Mist Filter - Fits The Following Pumps: Edwards E1M40, E2M40, E1M80, E2M80
Dimensions: Height 15.25" Width 6" Length 10.75"
Ports: Outlet 1 inch BSP, Inlet NWKF25
Mass: 12 kg
Number Filter Elements: 2
Material: Steel
Edwards Part Number for (NEW) MF100: PN A462-03-000
Edwards Replacement Filter Element: PN A223-04-020
