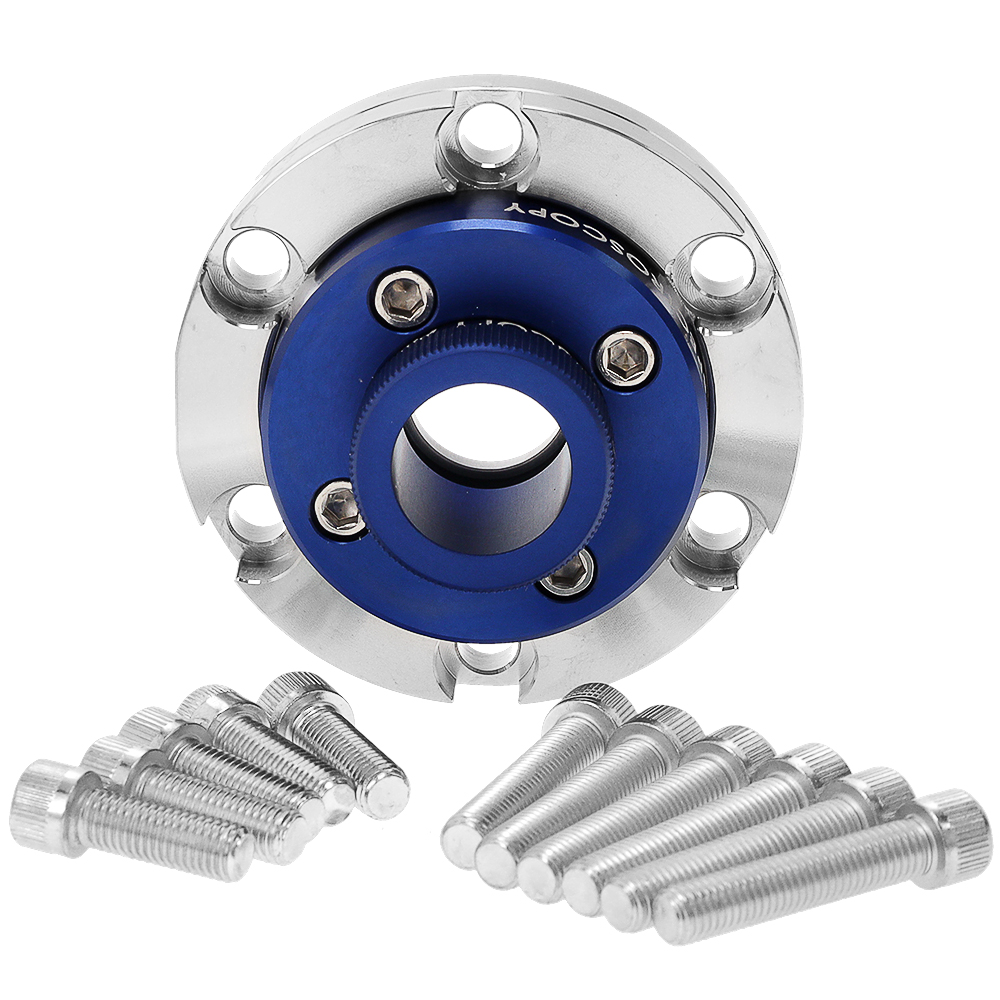

CF 2.75, 1 in. Optic Mount, Fits Variable Thickness and Wedged Optics, Viton Seal, Mounting Screws Included

Condition:
  New
Part Number:
  P1011776
Warranty:
  Against Product Defect

Available Now   1  

Sale: €187.36

CF 2.75, 1 in. Optic Mount, Fits Variable Thickness and Wedged Optics, Viton Seal, Mounting Screws Included 187.36
Currency: Euro (Euro)

Description

CF 2.75, 1" Optic Mount, Fits Variable Thickness and Wedged Optics, Viton Seal, Mounting Screws Included

These mirror mounts are designed for use in vacuum systems with a conflat CF 2.75 flange and can accept 1.0" OD optics of with a variety of thicknesses (0.07" - 0.50") with or without a small wedge (< 2°). The optic is held in place with a non-marring Viton seal on a knurled aluminum knob for easy optic removal and replacement. These mounts may be heated and baked out up to 150 °C. Mounting screws are included for connections to both tapped and through-hole conflat flanges.
