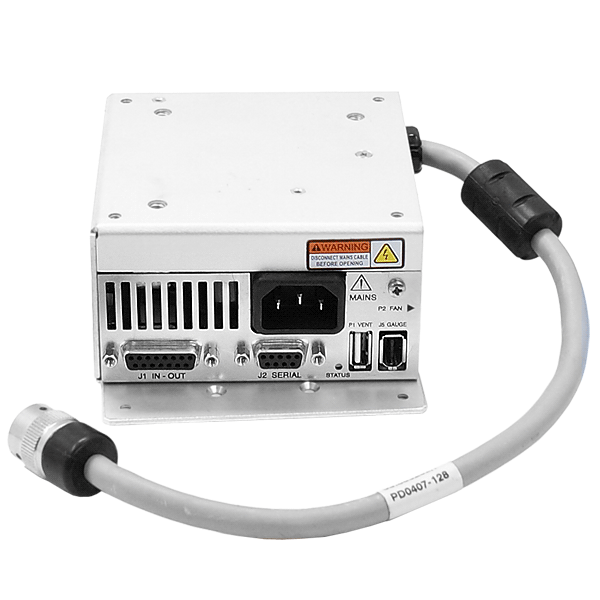

Agilent Varian Turbo-V 81-AG Navigator Solid State Vacuum Pump Controller PN 9698996

Condition:
  New
Part Number:
  P103197
Warranty:
  Agilent Warranty

Available Now   1  

Sale: ₹188,245.13

Agilent Varian Turbo-V 81-AG Navigator Solid State Vacuum Pump Controller PN 9698996 188245.13
Currency: Indian Rupee (INR)

Description

Agilent Varian Turbo-V 81-AG Navigator Solid State Vacuum Pump Controller PN 9698996

This Agilent Varian Turbo-V81-AG Navigator Controller is a single-state controlled frequency converter with the following features.

  • Drives the pumps of the Turbo-V81 Family.
  • Powers the pump cooling fan.
  • Drives the vent valve
  • Provides and acquires the pressure of the wide range gauge.
  • Remote I/O compatible with the previous verson.
  • Navigator default serial compatible with the previous RS 232 and 485 version
  • Able to operate with Active Gauges (IM-500, Full Range Gauge Frg-700 and FRG-702).

These Agilent Varian Turbo-V 81-AG Navigator controllers are driven by a single chip microcomputer and consist of two PCBs which include power supply and 3-phase output, analog and I/O section, microprocessor and digital section. The power supply, together with the 3-phase output converts the single phase AC mains supply or 24Vdc supply into a 3-phase low voltage, medium frequency output which is required to power the pump. These controllers have a serial port RS-232/485 which allows the pump to be interfaced with the system controls and to be operated via PC with T-Plus Software. (software sold separately) on this website. These Agilent Varian Turbo-V 81-AG controllers are New and come with manufacture warranty. For complete specifications, controller functions, and instruction manual please see the avaliable PDF download below.

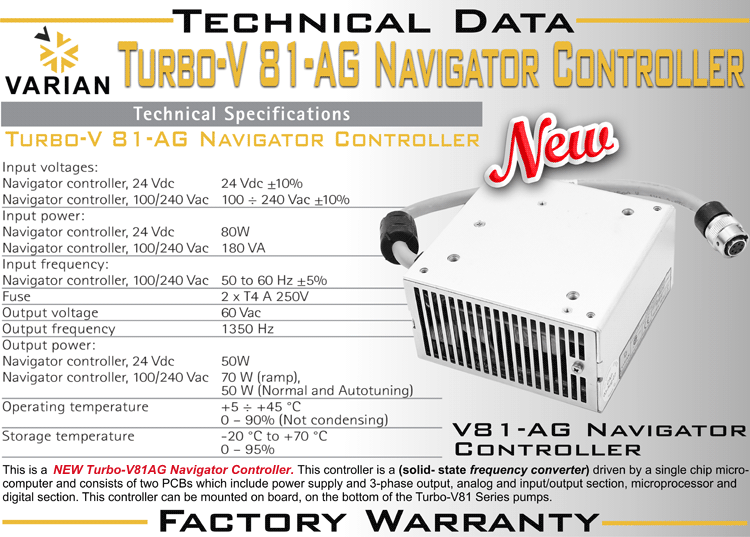

Brochure
