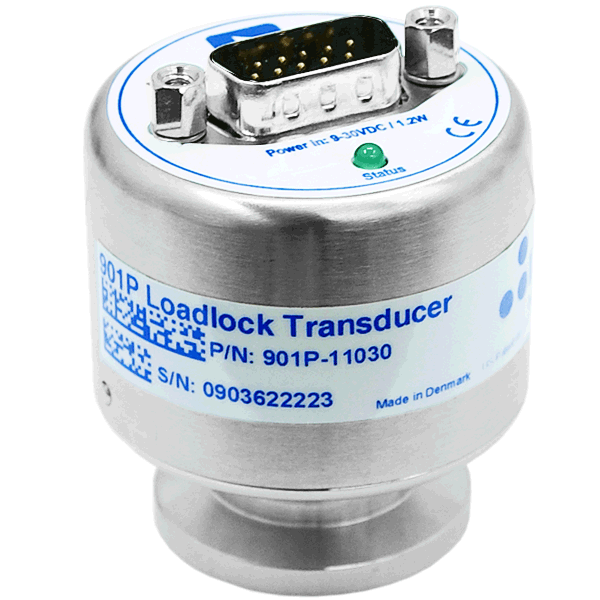

MKS HPS 901P Plus MicroPirani Piezo Loadlock Vacuum Transducer NW25, 10-5 to 1000 Torr

Condition:
  New
Part Number:
  P102866
Warranty:
  Against Product Defect

Available Now   5  

Sale: €1,342.64

MKS HPS 901P Plus MicroPirani Piezo Loadlock Vacuum Transducer NW25, 10-5 to 1000 Torr 1342.64
Currency: Euro (Euro)

Description

MKS HPS® Series 901P Plus MicroPirani™ Piezo Loadlock Vacuum Transducer ISO-KF NW 25, RS-232 PN 901P-21030

The MKS HPS® Series 901P Plus Transducer has a combined sensor output that measures from 1x10-5 to 1,000 Torr for monitoring pump-down cycles. This unique patented transducer is designed specifically for the loadlock environment, the 901 Plus (901P) replaces up to three sensors in one compact package. The 901P provides both pressure measurement and atmospheric switching capabilities, by integrating the MicroPirani™ and piezo sensor technologies. The differential sensor ensures accurate atmospheric pressure sensing under varying barometric pressure conditions, for optimum loadlock performance. Customers requiring both a power supply and display can use the 901P with the PDR900 Series Controller sold on this website. For complete specs and operation information See AVAILABLE DOWNLOADS below.


  • Specifications and prices are subject to change without notice. HPS® and MicroPirani™ are a registered trademark of MKS Instruments, Inc.



    MKS HPS® Series 901P Plus MicroPirani™ Piezo Loadlock Vacuum Transducer
    Options, Part Number (PN):
    ISO-KF NW 16, RS-232
    PN 901P-11030
    ISO-KF NW 16, RS-485
    PN 901P-12030
    ISO-KF NW 25, RS-232
    PN 901P-21030
    ISO-KF NW 25, RS-485
    PN 901P-22030
    4 VCR-F, RS-232
    PN 901P-41030
    4 VCR-F, RS-485
    PN 901P-42030
    8 VCR-F, RS-232
    PN 901P-51030
    8 VCR-F, RS-485
    PN 901P-52030
    ISO-KF NW 16 EXT, RS-232
    PN 901P-81030
    ISO-KF NW 16 EXT, RS-485
    PN 901P-82030
