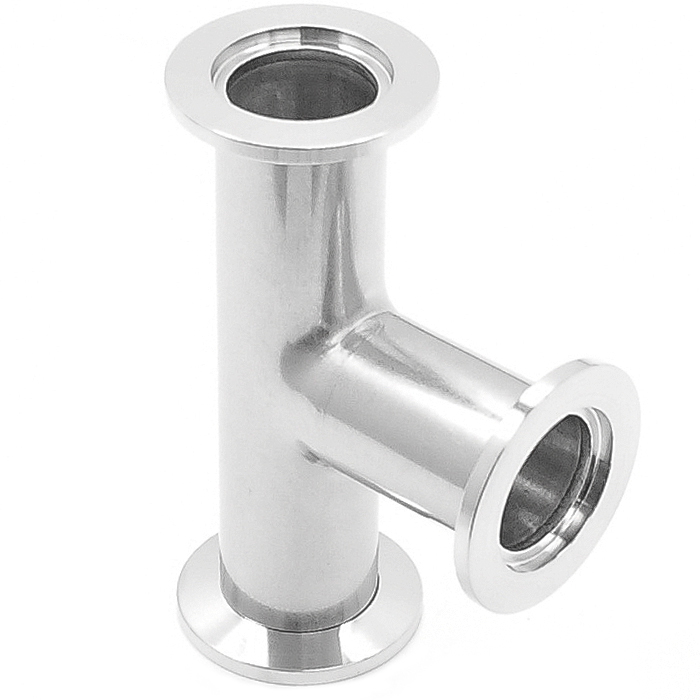

Tee KF-25 Vacuum Fittings, ISO-KF Flange Size NW-25, Stainless Steel

Condition:
  New
Part Number:
  P101210
Warranty:
  Against Product Defect

Available Now   115  

Sale: ¥18,585.95

Tee KF-25 Vacuum Fittings, ISO-KF Flange Size NW-25, Stainless Steel 18585.95
Expecting   320
Anticipated Arrival   320 on 2025-04-11
Currency: Japanese Yen (JPY)

Description

Tee KF-25 Vacuum Fittings, ISO-KF Flange Size NW-25, Stainless Steel

These KF-25 Tee fittings follow ISO-KF standards and have a flange size of NW-25. They are commonly used to build foreline vacuum plumbing and process systems. They are often called quick flange fittings because they are quick to assemble. A circumferential clamp and centering ring form the vacuum seal between the connecting flanges (please see top right figure - click to enlarge). The centering ring contains a rubber elastomer o-ring. The standard sizes for quick flange fittings are KF-10, KF-16, KF-25, KF-40, and KF-50 with flange sizes NW-10, NW-16, NW-25, NW-40, and NW-50, respectively. They are made of corrosive resistant stainless steel.

Tee
ISO-KF Flange Size: NW-25
Common Dimensions: A=1.97" (50mm), B=3.94" (100mm)
