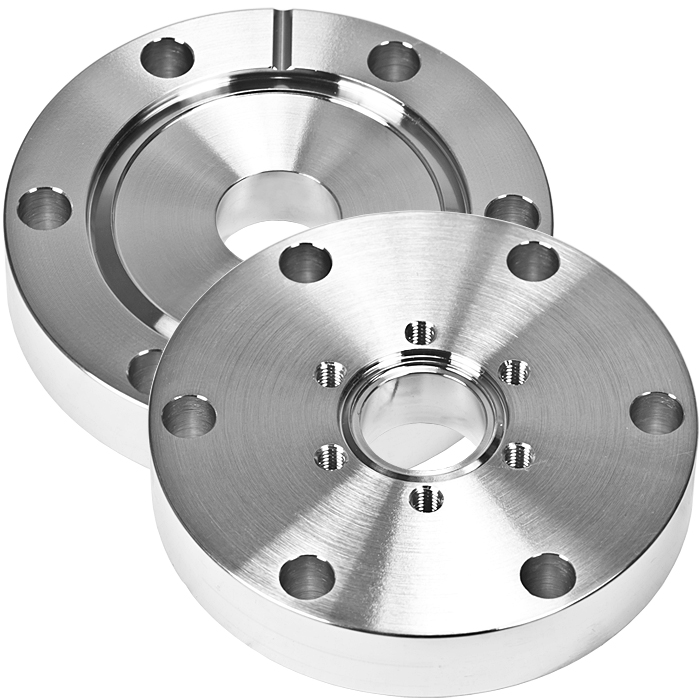

Conflat Flange (CF) Zero Length Reducer, CF 2-3/4 inch through hole to 1-1/3 inch tapped hole, SS

Condition:
  New
Part Number:
  P102237
Warranty:
  Against Product Defect

Available Now   21  

Sale: Kr1,708.43

Conflat Flange (CF) Zero Length Reducer, CF 2-3/4 inch through hole to 1-1/3 inch tapped hole, SS 1708.43
Expecting   25
Anticipated Arrival   25 on 2025-01-22
Currency: Norwegian Krone (NOK)

Description

Conflat Flange (CFF) Zero Length Reducer, CF 2-3/4 inches to CF 1-1/3 inches, Stainless Steel Fittings

These zero-length reducer vacuum fittings have a 2-3/4 inch to 1-1/3 inch conflat (CF) flange. ConFlat (CF) flanges are used for ultra-high vacuum applications. These fittings use a copper gasket and knife-edge flanges to achieve the high vacuum seal and can operate down to 10-13 torr (10-11 Pa) and can be heated to 450 °C for bake-out. North American flange sizes are given by flange outer diameter in inches: 1-1/3 ("mini conflat"), 2¾, 4½, 6, 8, 10, 12, 13¼, 14 and 16½. In Europe and Asia, sizes are given by tube inner diameter in millimeters: DN16, DN40, DN63, DN100, DN160, DN200, DN250. These vacuum fittings are made of corrosive resistant stainless steel. Sold as one each.


Conflat Flange (CF) Zero Length Reducer, CF 2-3/4 inches (Through Hole) to 1-1/3 inches (Tapped Hole), Stainless Steel
CF Flange Size: CF 2-3/4 to 1-1/3 inch
Common Dimensions:
Large Flange Dimension (Through Holes) = CF 2.125 inch
Small Flange Dimension (Tapped Holes) = CF 1.33 inch
A = 15.75mm
B = 11.90mm
Tube Size = 3/4 inch
