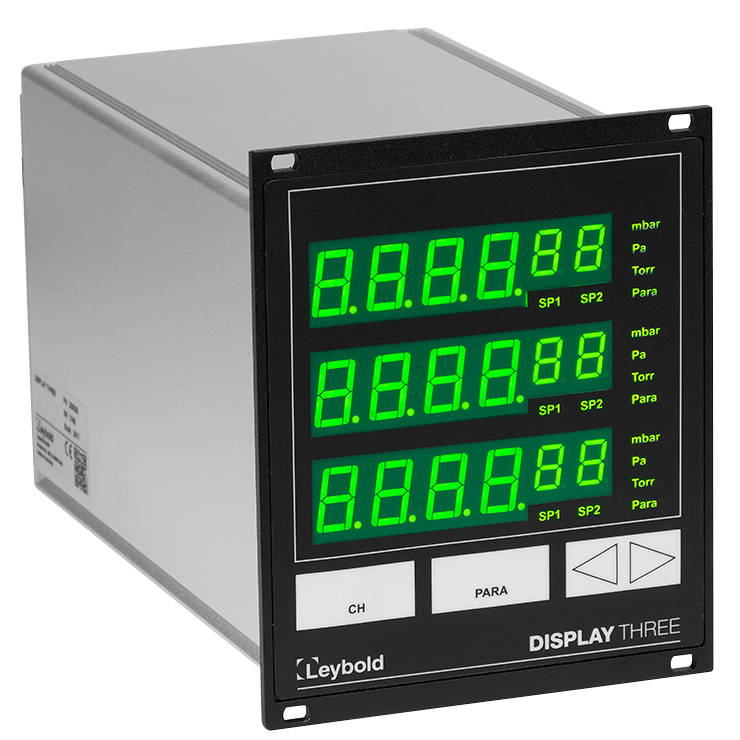

Leybold Display Three, Operating and Display Unit for Thermovac and Penningvac Series Transmitters, 3 Channels

Condition:
  New
Part Number:
  P109698
Warranty:
  Full Manufacturer's Warranty

Available Now   1  

Sale: Kr24,010.36

Leybold Display Three, Operating and Display Unit for Thermovac and Penningvac Series Transmitters, 3 Channels 24010.36
Currency: Norwegian Krone (NOK)

Description

Leybold Display Three, Operating and Display Unit for Thermovac and Penningvac Series Transmitters, 3 Channels
Leybold PN 230025

The Leybold Display Three operating and display unit is a cost effective way of monitoring your vacuum systems pressure range. The Display Three has 3 channels and both powers and monitors THERMOVAC and PTR 90 PENNINGVAC series Leybold pressure sensors as well as DU sensors. The display is a four digit mantissa readout in the range from 0.75 x 10-9 to 1500 Torr (1 x 10-9 Mbar) and can be viewed in either Torr, Mbar, or Pascal.

The Leybold Oerllikon Display Three Accepts the Following Sensors

THERMOVAC
  • TTR 211
  • TTR 216 S
  • TTR 90
  • TTR 91/ TTR 91 N
  • TTR 96 S/ TTR 96 N S
  • TTR 100
  • TTR 100 S
  • TTR 101/ TTR 101 N
  • TTR 101 S/ TTR 101 N S
  • TTR 911/ TTR 911 N
  • TTR916/ TTR 916 N

    PENNINGVAC
  • PTR 90/ PTR 90 N
  • PTR 225/ PTR 225 N
  • PTR 225 S/ PTR 225 N S
  • PTR 237/ PTR 237 N

    Linear Pressure Sensor
  • DU 200
  • DU 201
  • DU 2000
  • DU 2001
  • DU 2001 rel

Brochure
